$ 2,699.99In Stock
| Model # 941900030
- FREE SHIPPING ON ALL MOTORS!
- GREAT CUSTOMER SERVICE!
- NO SALES TAX*

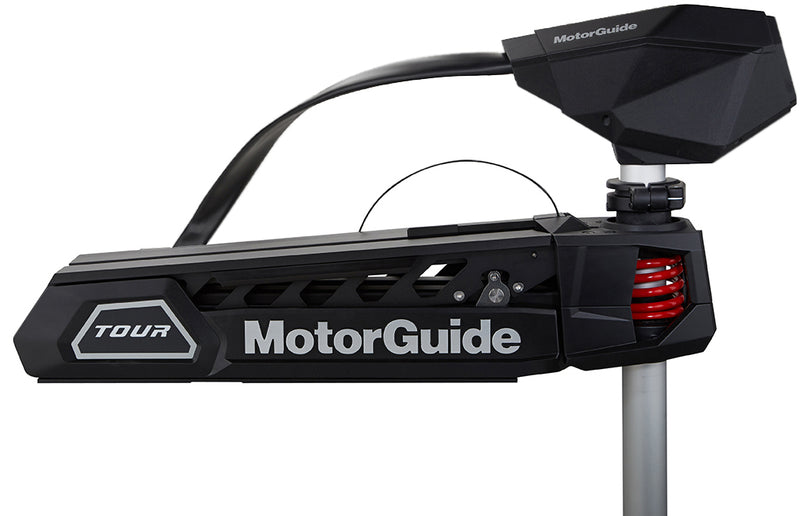

The new MotorGuide® TOUR Pro Series is MotorGuide's most advanced trolling motor and it's ready to feed on the competition. The TOUR Pro is a true cable steer motor that also includes PinPoint GPS. It provides you with the classic steering feel that you love with all of the popular GPS technologies like anchor lock (aka Spot Lock), available integrated HD+ Sonar and more.
Medium to larger sized, freshwater bass boats, pontoons and general fishing boats. The 109 lbs thrust, 36 volt motor is recommended for boats weighing up to 5,500lbs. For more help picking the right thrust level - or to learn how much your boat weighs - please refer to our thrust guide.
How It's Unique
The new TOUR Pro series motors are a step-up from the MotorGuide TOUR Series motors: it's true cable steer that includes PinPoint GPS. The TOUR Pro is available with thrust options of 82 and 109 lbs.
TOUR Pro 109 models are available in a shaft length of 45". To make sure that 45" is enough for your boat please see our shaft guide.
No-flex metal pedal, Zero-G Lift Assist, LED Indicator Lights, Two-Blade Katana Prop, Composite Shaft, Integrated Bounce Buster (sold separately) and cable routing and 360º breakaway mount (Learn about these features)
- HD+ Integrated Sonar
The TOUR Pro models include a 360º breakaway mount which protects to shaft from breaking when hitting a stump or rock. The motor is bolted directly to the bow of the boat using the included mounting hardware, and requires drilling into the boat for installation. Ideally, it's best to have access to the underside of the mounting platform in order to secure and fasten the bolting hardware. However, if accessing the underside is impossible you can use no access bolts to secure the motor from the top. For more information see our compatibility and mounting guides.
The TOUR Pro 109lb (36 volt) can be wired directly to the batteries, and can also be used in conjunction with a plug and receptacle for a cleaner, more professional installation that's easy to remove. To protect your motor from damage, a circuit breaker is also recommended but is not required for installation.
Motor Voltage and Batteries:
The TOUR Pro 109lb is a 36 volt motor and requires (3) 12-volt marine batteries. The Tour Series motors are also compatible with lithium ion batteries. For more information, see our articles on battery selection or battery wiring diagrams.
Power Lead Length:
Pedal Cord Length:
What Is Included:
- TOUR Pro 109lb, 36 volt trolling motor
- Wireless Remote
- Metal Foot pedal
- Power leads
- Mounting hardware
- Owners manual
What Else Is Required:
3 Marine Batteries, Battery Charger, 60 amp Circuit Breaker (Recommended).
41 amps at maximum speed
Motor Run Time:
Important Note: As you likely won't be running your trolling motor perpetually, the actual amount of on-the-water time a motor should allow will be substantially longer than times listed. Actual motor run time can vary depending on conditions (winds, waves, etc) and the type of battery used. Listed below are run-time estimates assuming a 100 amp hour rated battery. To learn more, please see our article on calculating motor run time.
- 18+ Hours: At slow, trolling speeds that draw 5 amps or less
- 4.8 Hours: Approx. run time with throttle 50% open
- 2.4 Hours: Approx. run time with the motor at full throttle
Stow and Deploy Method:
The TOUR Pro 109lb includes the Zero G Lift Assist with nitrogen gas pistons which provides incredibly easy stow and deployment of the motor.
Motor Steering Method:
The motor is steered via foot pedal cable steering and wireless remote.
An adjustable depth collar makes it easy to set how deep the shaft and propeller sit in the water.
All MotorGuide TOUR Pro Models have variable speed.
MotorGuide TOUR Pro Owners Manual
MotorGuide motors carry a 3 year warranty against manufacturer defects and are supported by hundreds of local MotorGuide service centers across the country.
