Minn Kota's newest line of On-Board Precision Chargers have arrived; now with the ability to charge Lithium batteries.
Longer run times. Shorter charge times. That's the precision difference that keeps anglers on the water longer and puts more fish in the boat. Now, the next generation of this legendary line of chargers has been optimized for 12 volt lithium (LiFePO4) batteries. Precision chargers feature battery-type selection by bank, which now includes charge curves specially formulated for the high demands of lithium batteries, and can even wake these battery types from standby.

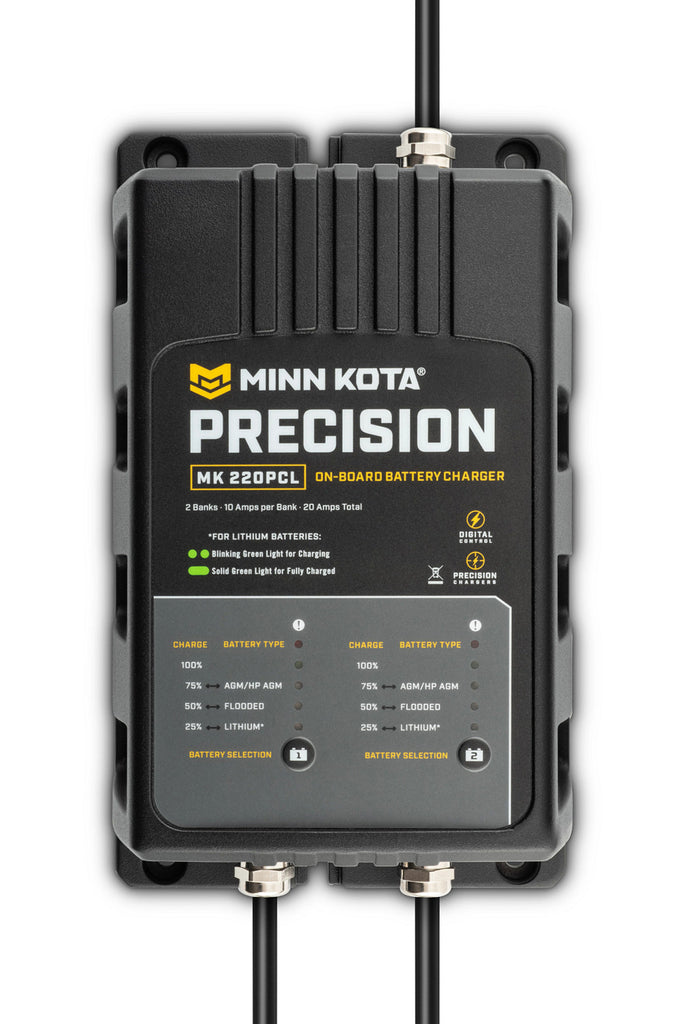

The MK 220 PCL is a 10amp charger for 2 - 12v batteries. Typical charging time for fully depleted batteries ranges from 6-8 hours.
10 Amp Double Bank Precision Charger MK 220PCL Full Details
On-Board (AC Power)
2 - 12v Lead acid or Lithium(LiFePO4) batteries
- Battery Type Selection: Each charging bank can be selected to your specific battery type (Lithium (LiFePO4) AGM or flooded lead acid) to guarantee a safe, protected charge
- Automatic Temperature Compensation: Precision chargers sense and adjust to ambient temperature fluctuations to ensure a fast, accurate charge
- Low-Line Voltage Compensation: When outlets don't put out the 120 volts they are supposed to, Precision Chargers compensate to deliver a fast, consistent charge no matter what
- Battery Equalization: Cleans and protects your battery (flooded lead acid only) every time you plug in. Also activates a more rigorous, complete cleaning at the push of a button
- Digital Control: Microprocessor-based design delivers a faster, more precise charge every time. Precision chargers can even wake dead 12 volt lithium (LiFePO4) batteries from standby automatically.
- LED display lets you independently select your battery type by bank, inform of charge stage, maintenance mode status, error notifications and full charge
- Lightweight Design, Precision chargers are half the weight of traditional chargers
- Durable construction - waterproof, saltwater resistant, shock resistant
- Three year warranty
Re-charging three fully depleted batteries will take approximately 6-8 hours.
This on-board charger is designed to be permanently mounted in the boat and hard-wired to the trolling motor battery. Mounting the charger will likely require the drilling of minor holes, and all mounting screws and hardware is included. The battery leads are pre-wired for battery terminals and can be permanently connected without further accessories or parts.
The charging leads that run between the charger and the battery are 6' long. If further length is needed, the cables can be extended using (at a minimum) 12 gauge wire. If extending, The splice should be made between the fork in the output cable and the fuse holder. The fuse holder should always remain within 7" of the battery terminals. Extensions should be limited to a maximum of 15'.
The AC power cord is also 6' in length and can be extended using any standard AC extension cord.
9.88" x 5.88" x 3.5" WT: 6.2 lbs
