$ 18.95In Stock
| Model # 8M4000954
- FAST FREE SHIPPING VIA UPS!
- GREAT CUSTOMER SERVICE!
- NO SALES TAX*

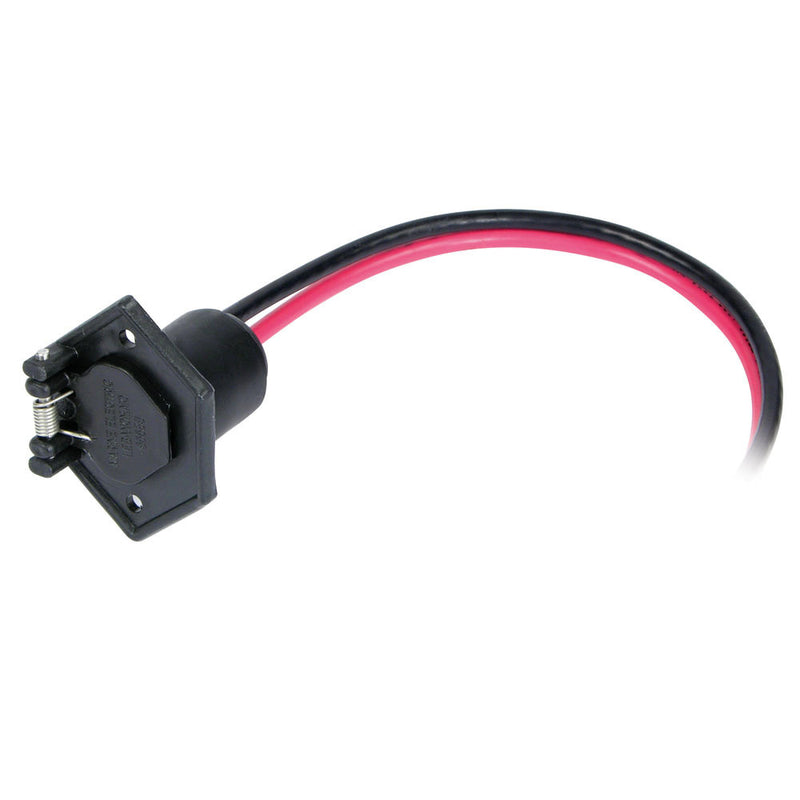

The MotorGuide Power Receptacle is compatible with the MotorGuide Power Plug. Ideal for fishermen who want to quickly remove power from their trolling motor, this power receptacle is easy to install and is compatible with two-wire 12, 24, and 36 volt trolling motors. Made with a standard 1-1/8" mount hole, this receptacle will easily fit on most boats.
Power Receptacle 50 Amp Full Details
Easy removal and connection of the trolling motor power leads. Ideal for trolling systems that feature a quick-release mount or quick-release plate.
Compatible with all 12, 24, and 36 volt trolling motors that have a 2 wire configuration.
The plug is pre-wired to (2) 8 gauge wires and has pre-installed crimping wire connectors. To attach the receptacle to your battery wires, you will need to strip 1/2" of wire coating off each of the battery wires and insert and crimp the wires into the wire connections. You will also need the MotorGuide Power Plug which is compatible with the MotorGuide power receptacle.
The plug comes standard with 8 gauge wire but can be attached to either 6 or 10 gauge wire. See our rules for extending trolling motor wiring to determine what gauge of wire you need.
Power Receptacle 50 Amp Reviews
Matched up perfectly with plug.
Dear Jon boat 16ft
Heavy duty and exactly what I wanted.
Lowe pontoon 20 ft
Bought a remote control for a minn Kota copilot works great easy setup and wow shipping was fast will do business again with trollingmotors.net
14 FT G3 Guide
Works very well. It came with the wire connectors in place, which was a huge help since wire connectors for 8 gauge wire aren't that easy to find. I was able to mount on the bare face plate of a PVC receptacle box in the very front V of my boat, so it is handy and out of the way. I bought 2 of the Power Plugs to fit into this receptacle, one for the trolling motor and one for my battery charger, so I don't have to pull the battery from the boat to charge it.
