$ 19.99In Stock
| Model # 1865107
- FAST SHIPPING VIA UPS!
- GREAT CUSTOMER SERVICE!
- INCLUDES INSTALLATION RESOURCES

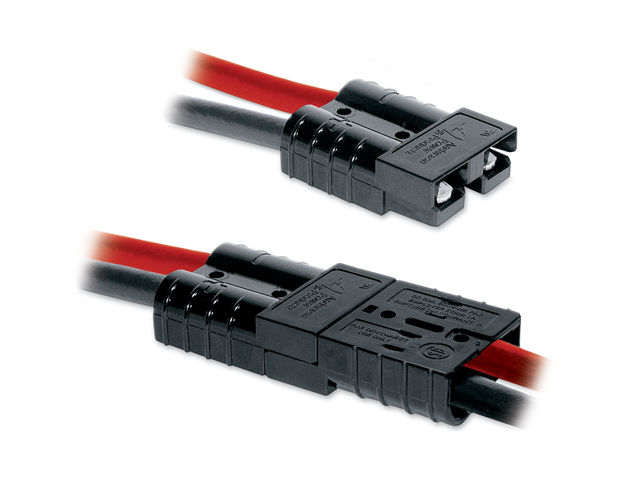

This heavy-duty trolling motor wire connector uses a snap-lock design for 6- to 12-gauge wire. It is designed to allow for the quick removal and connection of trolling motor wires and is installed in-line with the power leads. The kit includes two plug halves, four contacts and four solder plugs for securing wire leads into contacts (wire not included).
Quick Connect Plug Full Details
MKR-20 | 1865107
Quickly attaching and removing the trolling motor power leads from the boat. Is installed in-line with the wiring.
All standard trolling systems that use 6 to 12 gauge wire
To install the power plug you will have to strip the wiring 1/2" on each power lead. Once the leads are stripped, you will insert the wire into a metal contact along with a solder plug. Using a vice to hold the contact, solder plug, and wire in place, heat the solder plug with a propane torch until the solder flows into the wire and permanently attaches it to the contact. Once the solder is cooled you will push the contact into the black housing until it locks into place. The two ends of the housing fit together and can be pulled apart for removal.
Quick Connect Plug Reviews
- Reviews (2)
- Questions (0)
Jon Boat 12'
I used the quick disconnect for my trolling motor. I moved my trolling motor to the front of my boat and the motor's cable wouldn't reach. So I ran a cable the length of my boat, and used the disconnect to connect the motor to the new battery cable. Worked great!!
Boston whaler 15’ 5’’
Product sucks melted down first use replace with wire nuts no problem since
